Draw.io is a macro that enables you to produce your organization charts very easily as well as workflows and network diagrams.

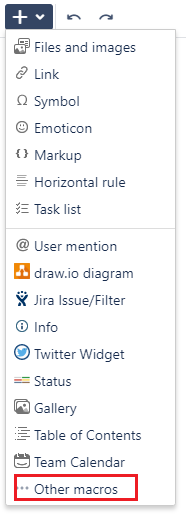

Step 1:  Click on '+' on the menu bar, then  select 'other macros











Easy access of macros: type the symbol { then type the name of a macro. If you are not sure of the exact name, once you enter the symbol { click on 'open macros browser'


Step 2: Search Draw.io and click to insert

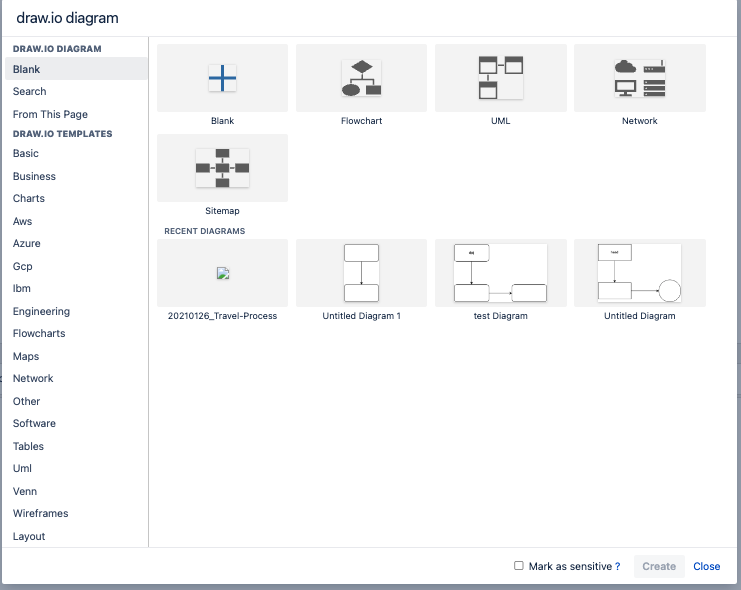

Step 3: Select the blank diagram or any other recent diagram.

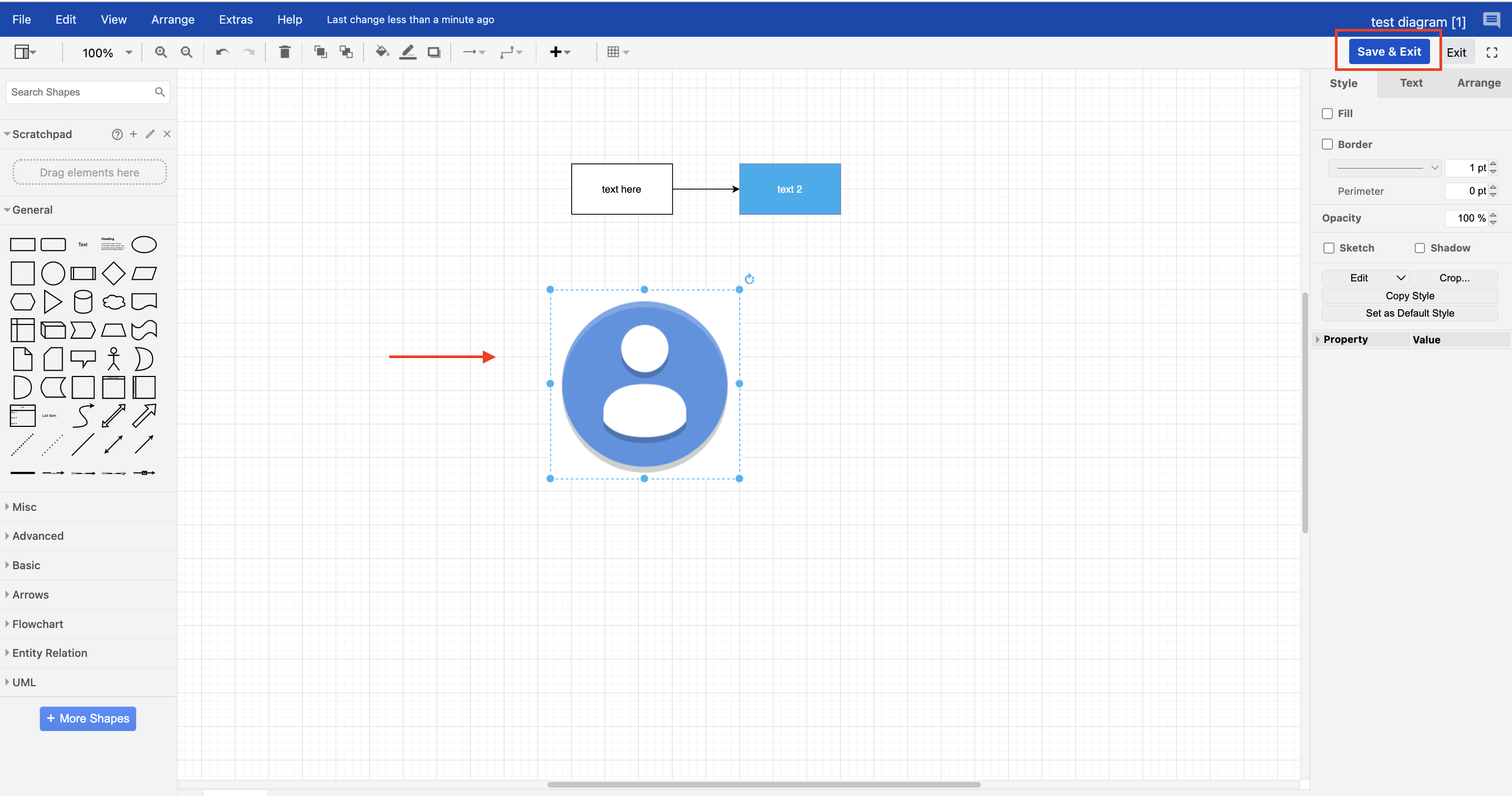

Step 4: Start editing and adding boxes.

how to add text boxes in draw io.mov

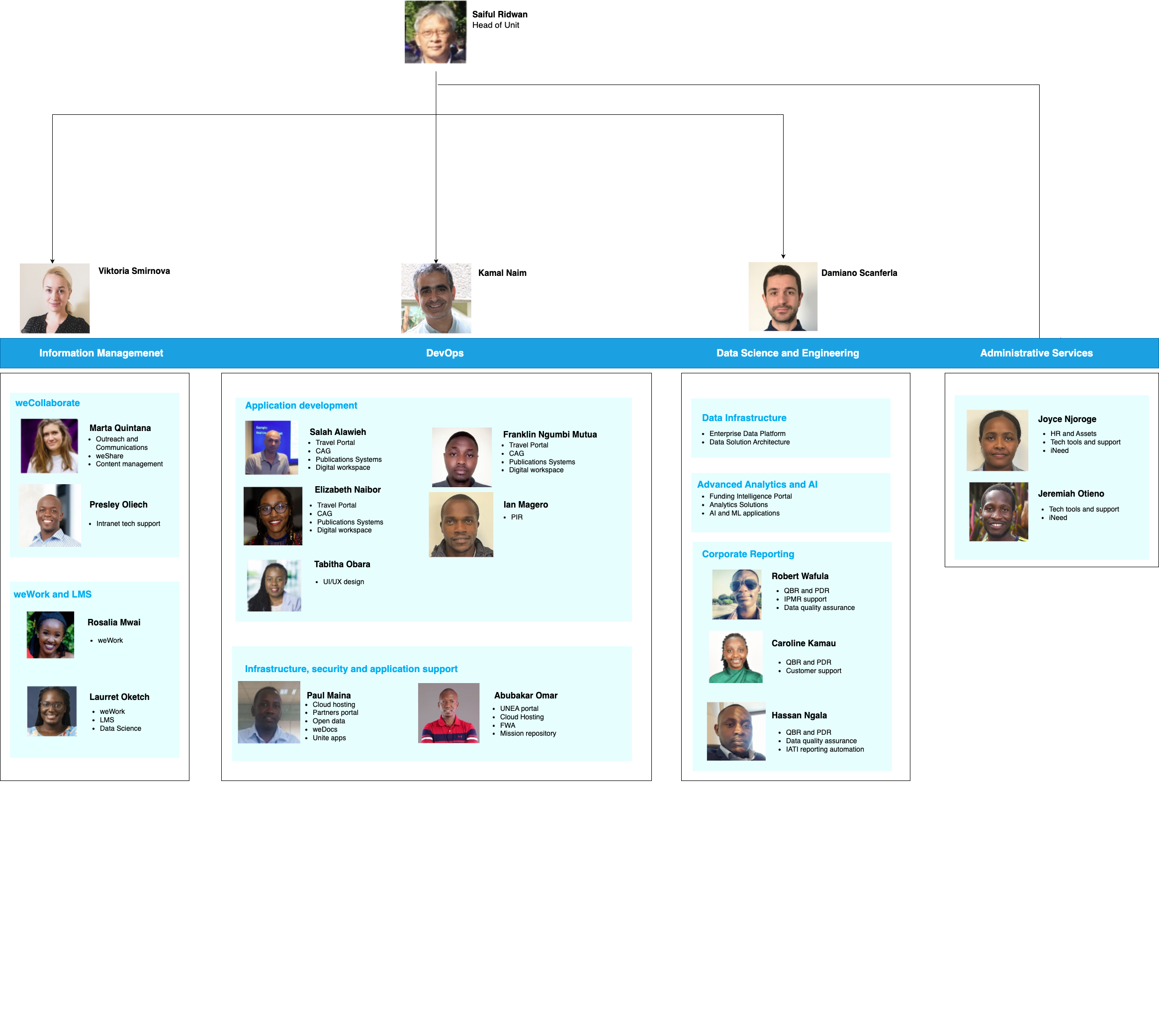

Step 5: Use this organogram as an example. Its main objective is to display ´who does what´ and how a unit is organized.






TIP: Color codes for text boxes


UNEP brand color:

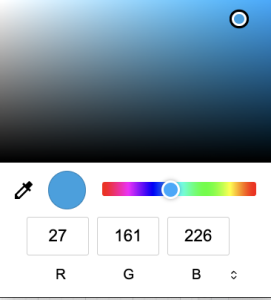

 Option 1: 00AEEF                              Option 2: RGB: 27-161-226




Light blue:

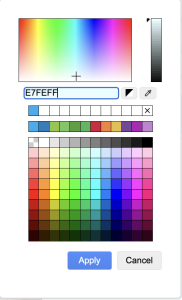

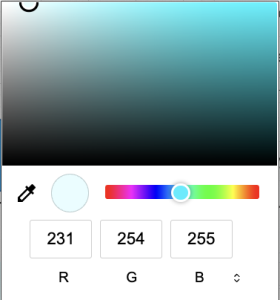

Option 1: E7FEFF                              Option 2: RGB: 231-254-225



How to add images to your draw.io diagram

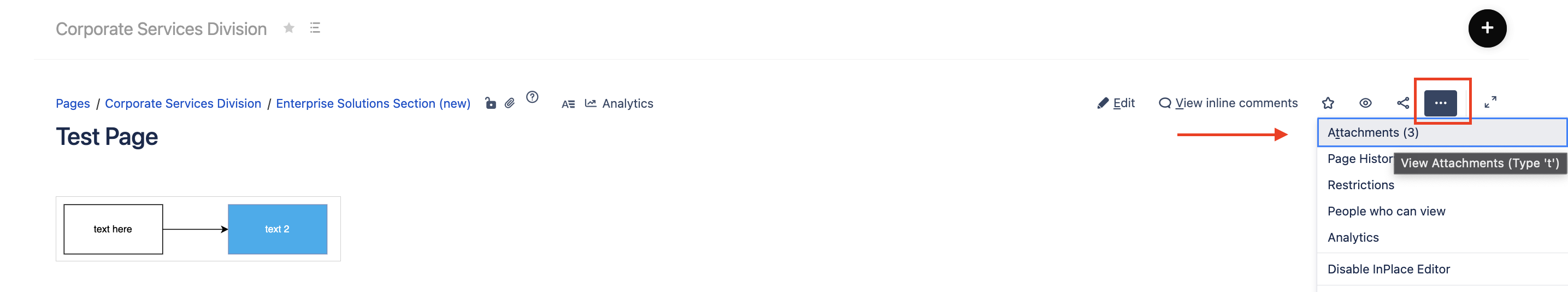

  1. Access the attachements section on your page

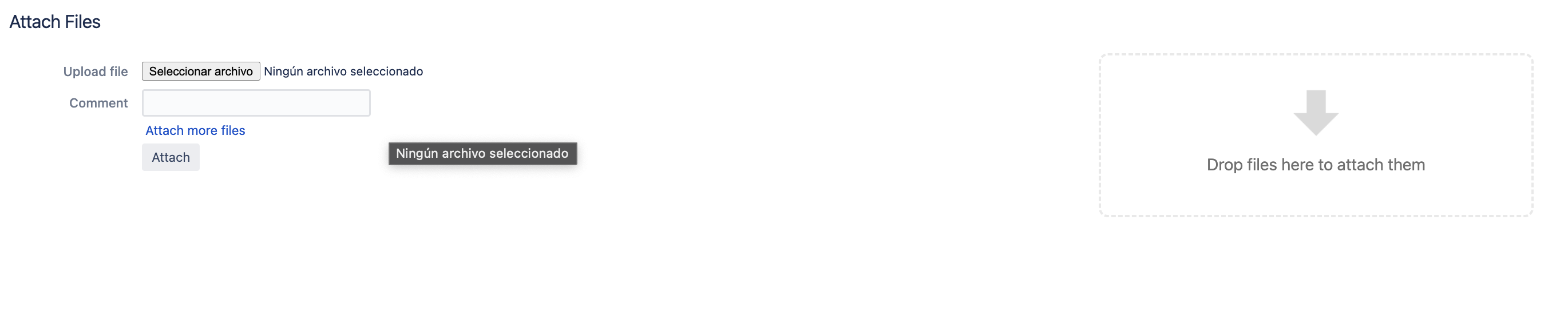

  2. Attach images

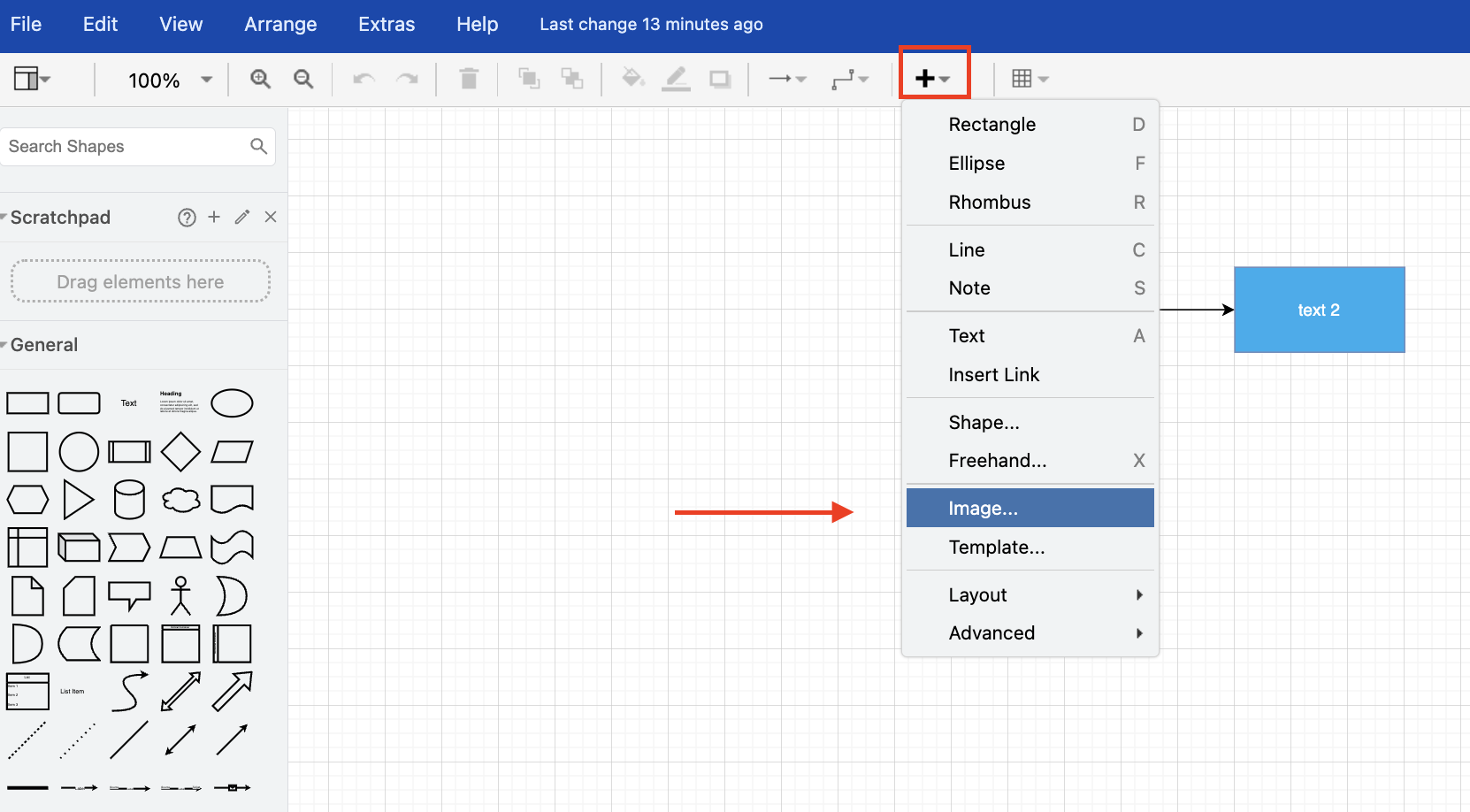

  3. Edit diagram and select plus sign in the top bar and click on image to add the attached pictures.

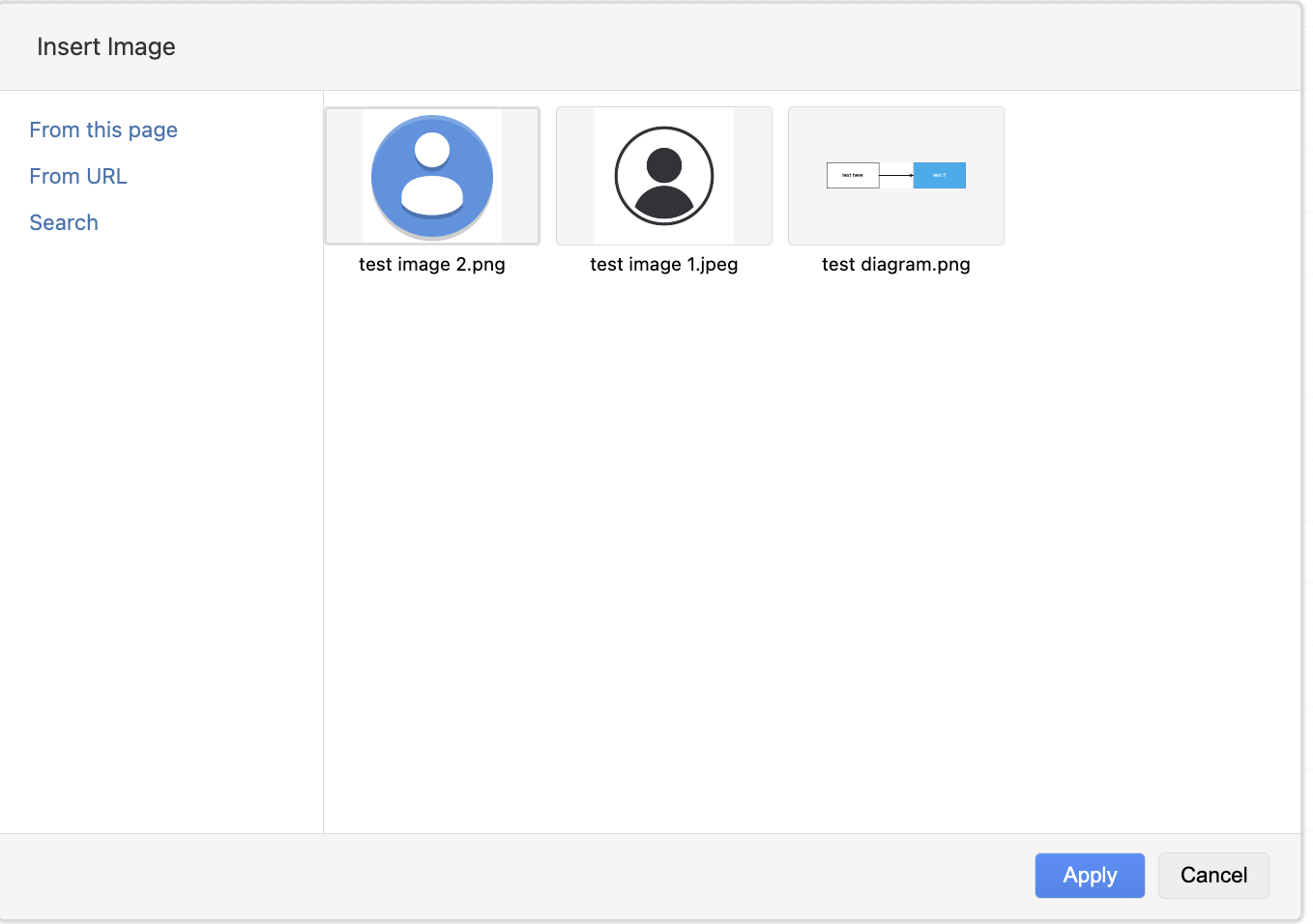

  4. Select the image you would like to insert and click apply






  5. Move and resize the picture to the correct place in the org chart  and save the diagram.
